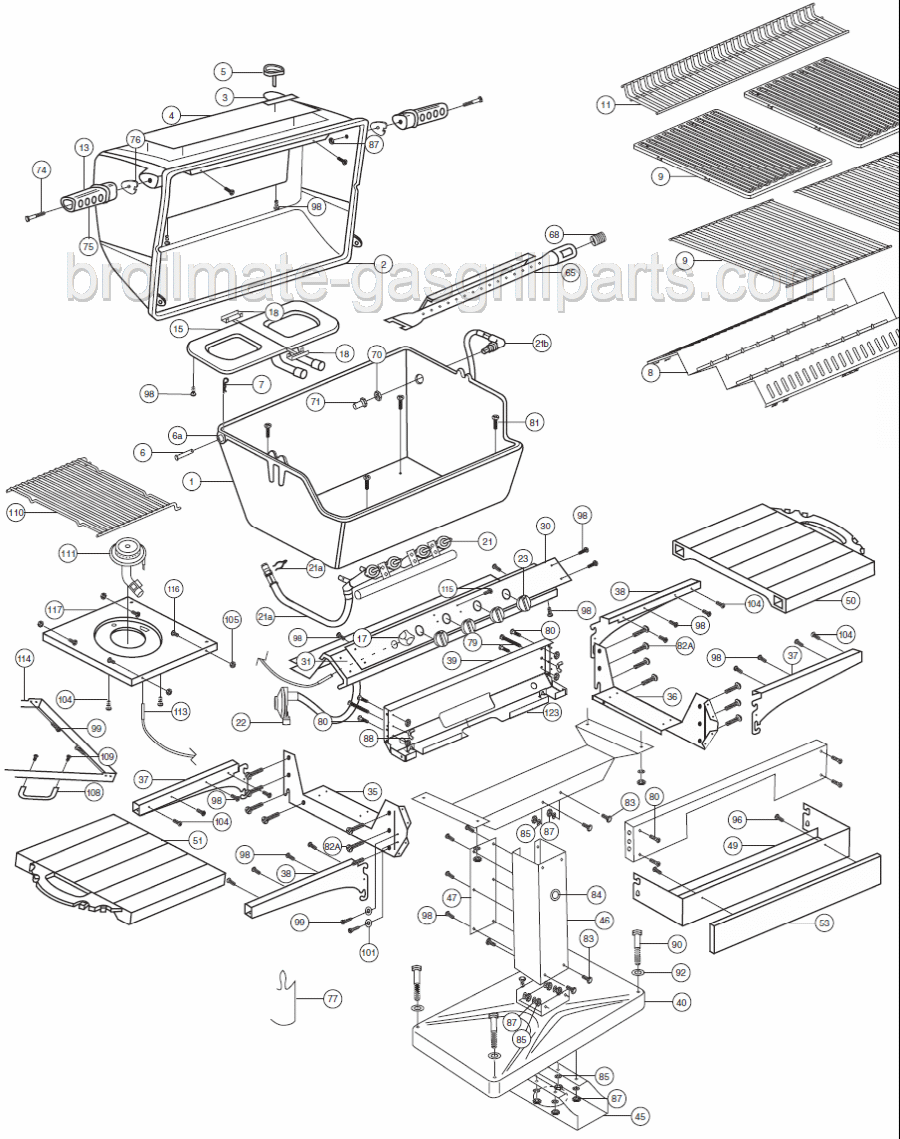

Grill model: 716-8

5

10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:31935-5
• OMC:571-C500

MORE...

7

S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:S21232

MORE...

8

10222-T425 Genuine OEM stainless steel Flav-R-Wave heat plate. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Note: Part 10222-T425 is the factory authorized replacement for the following parts, which are no longer available:

• OMC:10222-T424

MORE...

9

CG-21SS Premium grade solid stainless steel grid with 1/4" rods. Sold individually, two (2) required.
NOTE: This is an Aftermarket part, NOT an original factory part.

Note: Part CG-21SS is the factory authorized replacement for the following parts, which are no longer available:

• CG-21P

MORE...

11

CLA-WS0192 Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

15

S10017 Genuine OEM stainless steel burner and venturi assembly. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled. MORE...

17

10472-K40 Genuine OEM rotary igniter knob. MORE...

18

S15500 Genuine OEM collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18" wire with round connector and protective sleeve. MORE...

104

Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...
