Grill model: 742-8

FREE Shipping over $79 PlayButton
Broil-Mate grill

Genuine Broil-Mate factory replacement parts

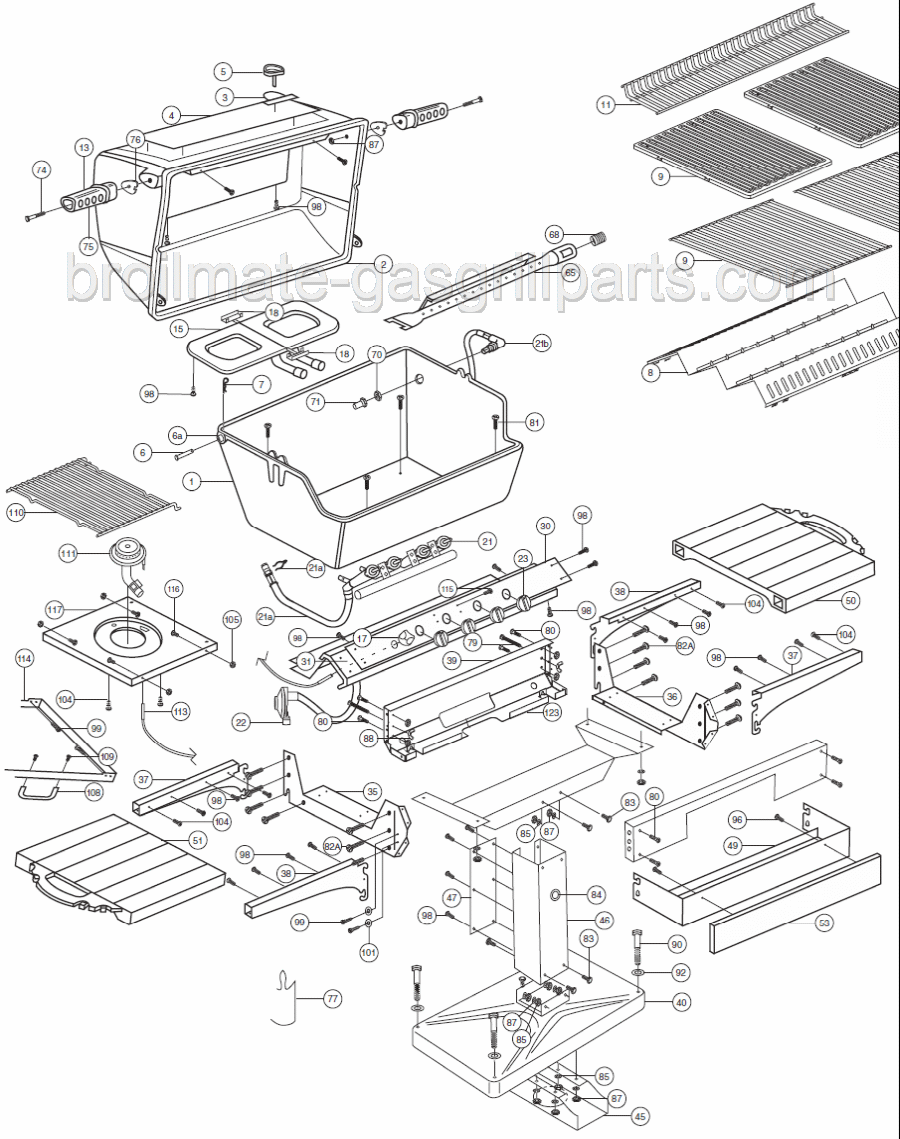

Here's the parts we have for model 742-8
Spend $79 or more and get Free USA shipping



5
10571-6 Genuine OEM Heat indicator. About 2 3/8" wide and 2" high. The threaded stem is about 5 /16" diameter and 1 1/8" long.

Note: Part 10571-6 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:31935-5
  • OMC:571-C500
MORE...


$21.20

7
S21233 Hinge pin clip.

Note: Part S21233 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:S21232
MORE...


$1.08

8
90401 carbon steel rock grate
NOTE: This is an Aftermarket part, NOT an original factory part.

Note: Part 90401 is the factory authorized replacement for the following parts, which are no longer available:

  • 93101
MORE...


$29.94

9
CG-21SS Premium grade solid stainless steel grid with 1/4" rods. Sold individually, two (2) required.
NOTE: This is an Aftermarket part, NOT an original factory part.

Note: Part CG-21SS is the factory authorized replacement for the following parts, which are no longer available:

  • CG-21P
MORE...


$49.81

11
CLA-WS0192 Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$49.62

15
S10017 Genuine OEM stainless steel burner and venturi assembly. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled. MORE...

$74.45

18
S15500 Genuine OEM collector box and electrode assembly. Includes
  • burner mounted collector box (clip on)
  • ceramic electrode and 18" wire with round connector and protective sleeve. MORE...

$5.45

21
10442-R54 CONTROL ASSEMBLY 75M 4V LP -- 2842
SPECIAL ORDER PART. This part is not in stock. Orders for this part may not ship for 4 to 10 weeks, depending on availablity and ship times from the manufacturer. MORE...

$80.76

21A
S13467-132 NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill. MORE...

$24.42

21A
Y-11230 Cotter pin MORE...

$1.08

23

10472-K431 Control knob large. Black with stainless steel BA strip. MORE...


$5.94

104
Y-12835 SCREW-PHCP 6-32X1/4 TY-F JS500 MORE...

$0.70

108
PB20-60 S/B LID HANDLE WAGON ENCLOSER* MORE...

$1.95

110
10225-T10 Genuine OEM side burner grid MORE...

$25.62

111
10390-E10 Genuine OEM Side Burner. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Note: Part 10390-E10 is the factory authorized replacement for the following parts, which are no longer available:

  • OMC:10390-E10D
  • OMC:10390-E10E
MORE...


$11.19

113
10342-T12 Genuine OEM 21" wire for side burner or other applications. Both ends are female spade connector. MORE...

$4.21

114
10393-K40 Genuine OEM Cover, side burner. MORE...

$18.73

?
45887 Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks. MORE...

$24.95




As of date: November 3, 2026
