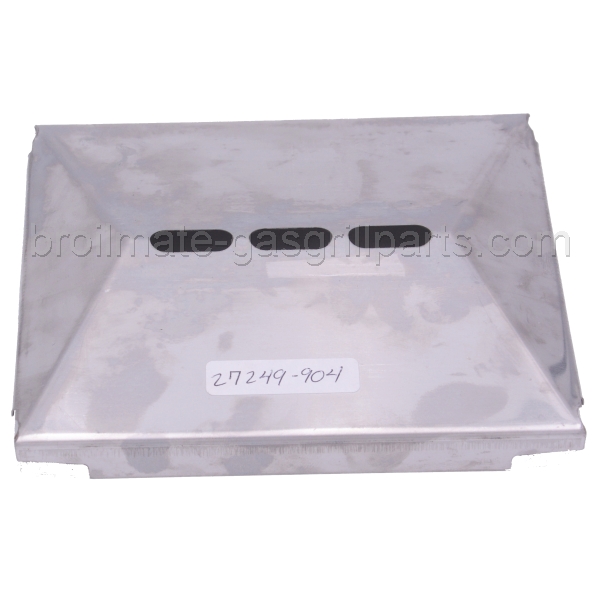

Part# 27249-904



Description: Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

NOTE: Part 27249-904 is the factory authorized replacement for the following parts, which are no longer available:
  • 22245-901
  • 27245-904
  • 27246-904


Dimension Front-To-Back: 6 1/2”

Dimension Side-To-Side: 6”

Material: stainless steel

Weight: .35

$7.61

Qty




  part-27249-904-SM1.jpg part-27249-904-SM2.jpg


27249-904 fits these Broil-Mate grill models:
  • 7020-54
  • 7020-57
  • 7020-64
  • 7020-67
  • 7120-64
  • 7120-67
  • 7123-64
  • 7123-64H
  • 7123-67
  • 7123-67H
  • 7123-84
  • 7123-87
  • 7130-54
  • 7130-57
  • 7130-64
  • 7130-67
  • 7133-64
  • 7133-67
  • 7133-84H
  • 7133-87H
  • 7139-84
  • 7139-87
  • 746189
  • 764054
  • 764057
  • 764064
  • 764254
  • 764257
  • 764264
  • 764267
  • 765254
  • 765257
  • 765264
  • 765267
  • 765284
  • 765287
  • 765324
  • 765327
  • 765344
  • 765347
  • 765354
  • 765357
  • 765364
  • 765367
  • 765384
  • 765387
  • 766264
  • 766267
  • 766284
  • 766287
  • 766324
  • 766327
  • 766344
  • 766347
  • 766364
  • 766367
  • 766384
  • 766387
  • 7761-54
  • 7761-57
  • 7761-64
  • 7761-67
  • 7761-84
  • 7761-87
  • 7765-84
  • 7765-87
  • 7811-54
  • 7811-57
  • 7811-64
  • 7811-67
  • 7821-54
  • 7821-57
  • 7821-64
  • 7821-67
  • 7821-84
  • 7821-87
  • 782254
  • 782254B
  • 782257
  • 782257B
  • 782264
  • 782264B
  • 782267
  • 782267B
  • 7825-64
  • 7825-67
  • 7825-84
  • 7825-87
  • 7831-64
  • 7831-67
  • 7831-84
  • 7831-87
  • 7835-14
  • 7835-17
  • 7835-24
  • 7835-27
  • 7835-44
  • 7835-47
  • 7835-64
