Part# DLB+V-12

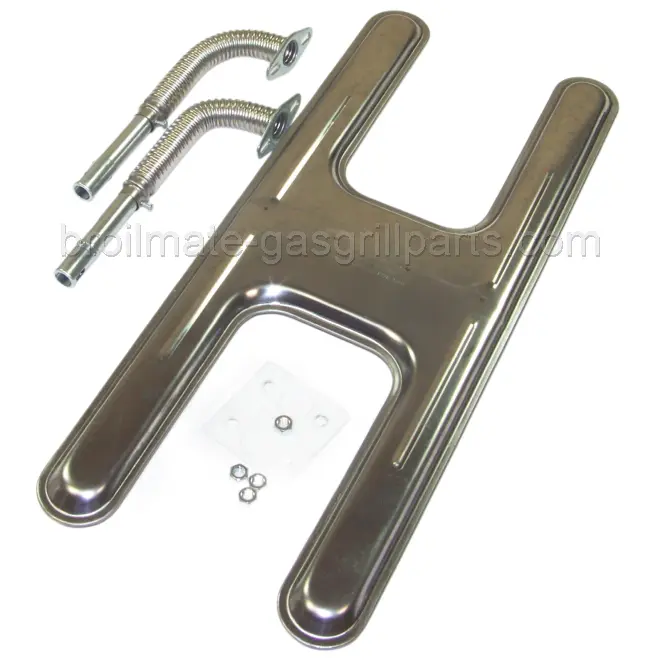

Description: Deluxe stainless steel twin-venturi burner and venturi assembly. Includes:
  • DLB stainless steel H burner.
  • Deluxe burners have a special spot-welded mounting bracket for optional IG-5B universal tongue-style collector box and electrode. The IG-5B can be used in applications where the factory ignition system is irrepairable, non existant, or otherwise unusable.
  • Two (2) V-12 stainless steel single venturi.
  • Venturi gasket and mounting nuts (venturi mounts with nuts and bolts, not screws).
  • 5 year MHP limited warranty.
  • Click here for features of MHP deluxe SS burner.


NOTE: Part DLB+V-12 is the factory authorized replacement for the following parts, which are no longer available:
  • DLB+DV-4

NOTE: This is an Aftermarket part, NOT an original factory part.

Dimension Front-To-Back: 8 1/8”

Dimension Side-To-Side: 19 1/2”

Material: stainless steel

Weight: 2.0

$75.46


  part-DLB+V-12-SM1.jpg part-DLB+V-12-SM2.jpg part-DLB+V-12-SM3.jpg part-DLB+V-12-SM4.jpg
